Inherent Thermal Management

Ceramic substrates such as alumina, aluminum nitride, and beryllium oxide are highly thermally conductive materials which transfer heat away from hot spots quickly and efficiently, dissipating it over the whole surface. PCB material (FR-4) is epoxy based with poor thermal conductivity, leading to hot spots which reduce the life of most semiconductor junctions. Typical thermal conductivities of ceramics and FR-4 are:

Material (W/m-K)
Alumina 28–35
Aluminum Nitride 140–180
Beryllium Oxide 170–280
FR-4 0.8–1.1

Higher Temperature Operation

MPT is building on its experience with hybrid technology in designing and fabricating hybrids for high temperature operation. Hybrids are microelectronic circuits comprising multiple devices, often in die form, within a hermetically sealed metal enclosure or an impervious conformal coating. The ceramic substrates used in hybrids have their conductive traces, insulating layers and printed resistors fired at 850°C, and are routinely designed to operate long term in the 150-250°C range. By comparison, FR-4 PCB assemblies are typically rated for a maximum temperature of 130°C for short periods, beyond which damage to the PCB structure starts to occur.

Active Resistor Trimming

Resistor values can be adjusted by laser trimming during the functional operation of the circuit, allowing the dynamic tuning of circuits as an automated production process.

Maintain Electrical Characteristics in Conversion

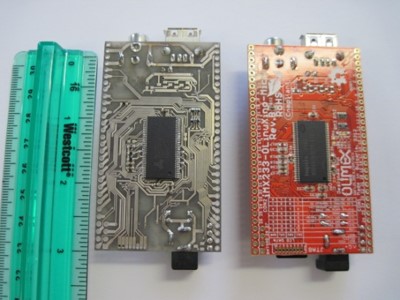

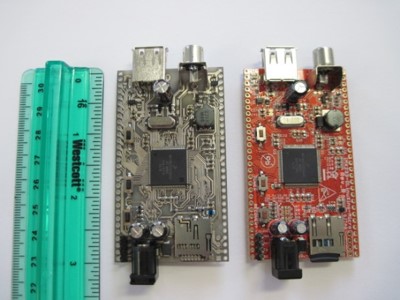

Single-board computer assembly on MPT ceramic engineered substrate (left) and FR-4 (right). All electrical characteristics and specifications are maintained.

Single-board computer assembly on MPT ceramic engineered substrate and FR-4
